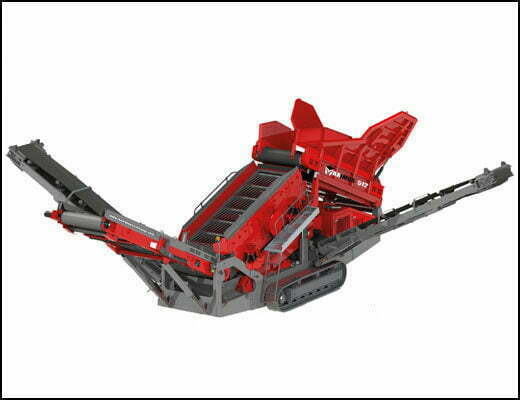

512

The Maximus 512 has been developed for the medium-sized end users who require its versatility and ease of transport, without compromising on build quality and reliability. Designed to cope with the heaviest applications, the Maximus 512 can be used in crushing circuits, demolition and construction waste management, aggregates, heavy rock and topsoil applications, as well as many others.

FEATURES & BENEFITS
• Fold over the top conveyors
• High duty, high energy 2 bearing screen box
• Heavy duty Hardox hopper
• Punch plate, finger decks, bofar decks, mesh all available

Weight
EST 25,680 Kgs (56,624 Lbs)
Power Unit
CAT C4.4 129 HP / Cummins
Feeder Capacity
6m3 (7.8yd3)
Feeder Conveyor
1300mm (51'')
Collection Conveyor
1200mm (48'')
Tail Conveyor
1300mm (51'')
Mid Size Conveyor
800mm (31'')
Fines Conveyor
800mm (31'')
Top Deck
3.665 x 1.215 (12' x 4')
Bottom Deck
3.335 x 1.395 (10'-11'' x 4'-7'')

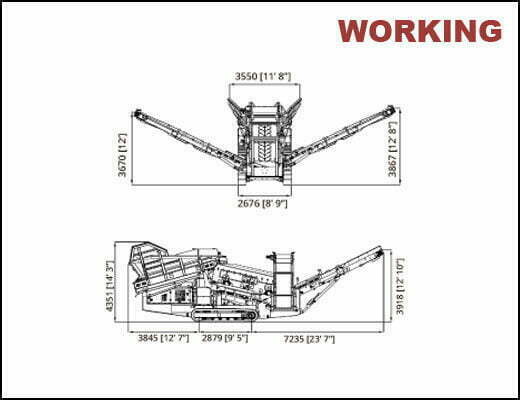

Transport Length
13436mm (44'-1'')
Transport Height
3201mm (10''-6')
Transport Width
2731mm (9'-0'')

Enquire about 512
