620

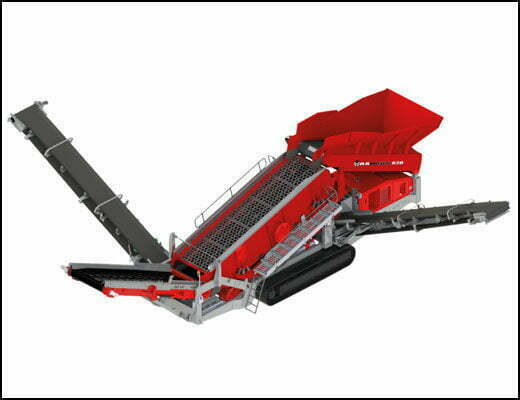

The Maximus 620 is a heavy duty, high capacity mobile scalper designed for large scale operators and capable of screening a wide variety of material in the harshest conditions It is designed to cope with the heaviest applications and can be used in construction and demolition waste, primary crusher circuits, iron ore, aggregates, coal, recycling, heavy rock and top soil.

FEATURES & BENEFITS
• Adjustable screen throw angle and speed for difficult applications
• Longer side conveyors – greater stockpiling capacity
• Hydraulically folding side conveyor
• Full impact bed in belt feeder conveyor
• 1600mm wide tail conveyor
• Hydraulically folding, wider walkways as standard
• Punch plate, finger decks, bofar decks, mesh all available

Weight
EST 43,000 Kgs (94,798 Lbs)
Power Unit
Cat C7.1 T3 / Cummins B6.7 T4F/Stage V
Feeder Capacity
8.7m3
Feeder Conveyor
1400mm
Collection Conveyor
1400mm
Tail Conveyor
1600mm
Mid Size Conveyor
1000mm
Fines Conveyor
1050mm
Top Deck
6.100 x 1.830 (20' x 6')
Bottom Deck
5.900 x 1.830 (19' x 6')

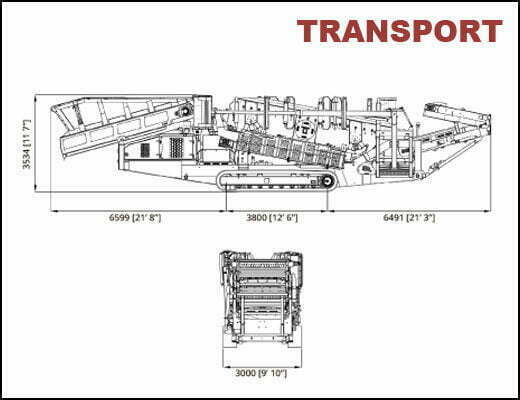

Transport Length
16900mm (55'-5'')
Transport Height
3534mm (11''-7')
Transport Width
3000mm (9'-10'')
