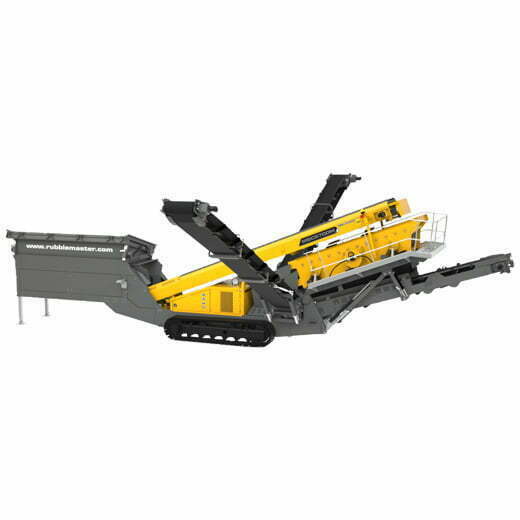

RM MSC5700M-2D

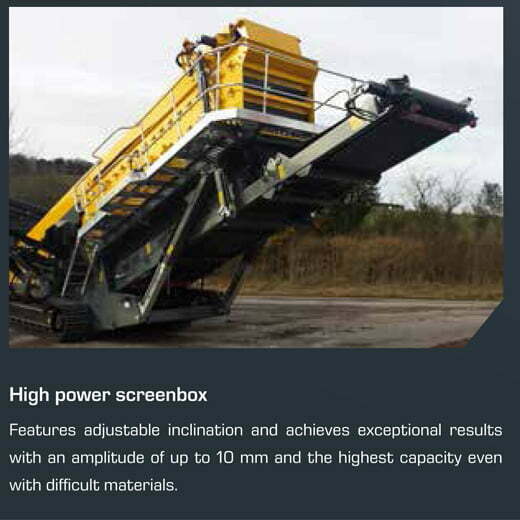

Screenbox, screen surface
3,660 x 1,525 mm
Screenbox, screen surface
25° - 35°

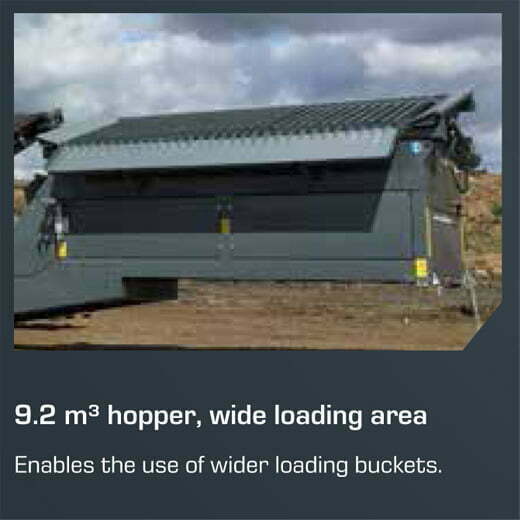

Feed hopper, volume
9.2 m³
Feed hopper, belt width
1,050 mm
Main conveyor, belt width
1,050 mm
Fines discharge belt, belt width
1,200 mm
Fines discharge belt, discharge height
3,300 - 4,555 mm
Side discharge belt, belt width
650 mm
Side discharge belt, discharge height
5,050 mm
Transport dimensions (LxWxH)
15,850 x 3,000 x 3,330 mm
Weight, basic machine
26,800 kg
Rinser option including spray bars and catchbox
-
