Screenbox, screen surface
5,485 x 1,525 mm
Screenbox angle
20° - 30°
Feed hopper, volume
9.2 m³
Feed hopper, belt width
1,050 mm
Main conveyor, belt width
1,050 mm
Fines discharge belt, belt width
1,200 mm
Fines discharge belt, discharge height
3,750 - 4,960 mm
Side discharge belt, belt width
800 mm
Side discharge belt, discharge height
5,100 mm
Transport dimensions (LxWxH)
17,650 x 3,000 x 3,400 mm
Weight, basic machine
32,000 kg

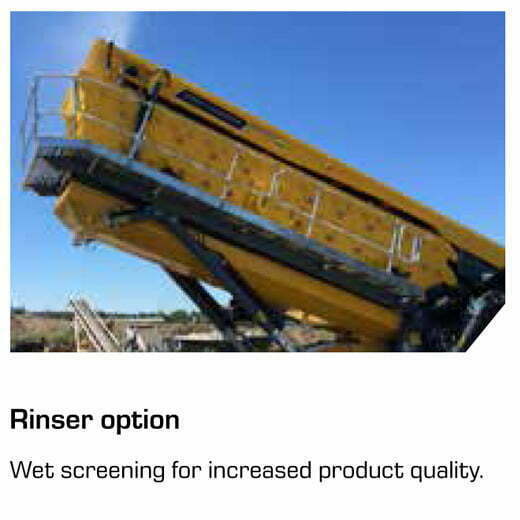

Rinser option including spray bars and catchbox
optional
