THE SV16 WAS CONCEIVED TO OFFER EXCELLENT PERFORMANCES IN A COMPACT DESIGN.
IT COMBINES POWER, HANDINESS AND STABILITY TO MAKE YOUR WORKDAY EVEN MORE PRODUCTIVE.

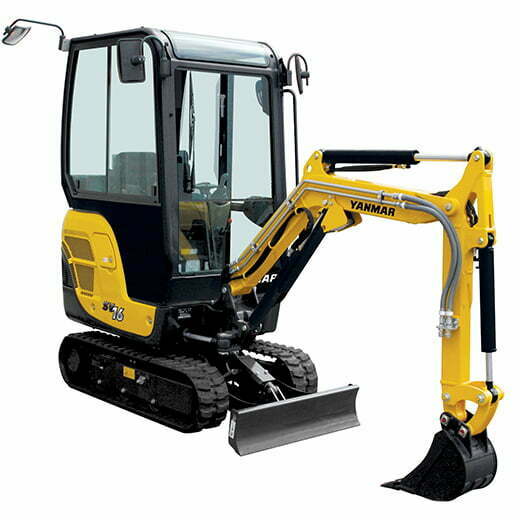

THE YANMAR SV16 MINI-EXCAVATOR WITH ULTRA-SHORT SWING RADIUS PROVIDES EASY ACCESS AND WORKS IN THE TIGHTEST SPOTS.
IT IS INTENDED FOR A WIDE RANGE OF APPLICATIONS SUCH AS URBAN RENEWAL, GRADING OR LANDSCAPING.
Operating Weight
1590 kg [Canopy], 1730 kg [Cabin]
Transport Dimensions
3450 x 980 x 2240 mm
Digging Depth
2005 mm, 2205 mm [Long arm]
Dumping Height
2440 mm, 2575 mm [Long arm]
Rear Swing Radius
980 mm
Digging Force (Arm/Bucket)
7,6 / 13,7 kN
Travelling Speed
1,7 / 3,3 km/h
Yanmar Diesel Engine
3 cylinders, 854 cm3, 12.1 kW / 16.5 HP / 2600 rpm
